Boiler & Hydronic Heating Repair in Shakopee, MN

Hydronic heating systems—including cast-iron radiators, baseboard convectors, and radiant in-floor loops—deliver some of the most comfortable, dust-free radiant warmth available in Minnesota. However, servicing a closed-loop hot water or steam boiler requires an entirely different skill set than standard forced-air furnace repair. Hydronics is fundamentally about fluid dynamics, water pressure balancing, thermal expansion, and mechanical pipefitting. Throughout Shakopee, historic downtown Chaska, Jordan, and rural Scott County, many classic properties and custom lake homes rely on natural gas, propane, or fuel-oil hydronic boilers. Performance Mechanical LLC provides master pipefitter boiler repair, system troubleshooting, and hydronic restoration. Company owner Wil Fonder completed formal training through the St. Paul Pipefitters Apprenticeship Program (Local 455) in Mechanical Equipment Service (MES) and graduated from Dunwoody College of Technology. When your boiler leaks, loses pressure, or leaves radiators cold during sub-zero cold snaps, call Wil directly at (213) 423-7827 for true master-level hydronic diagnostics.

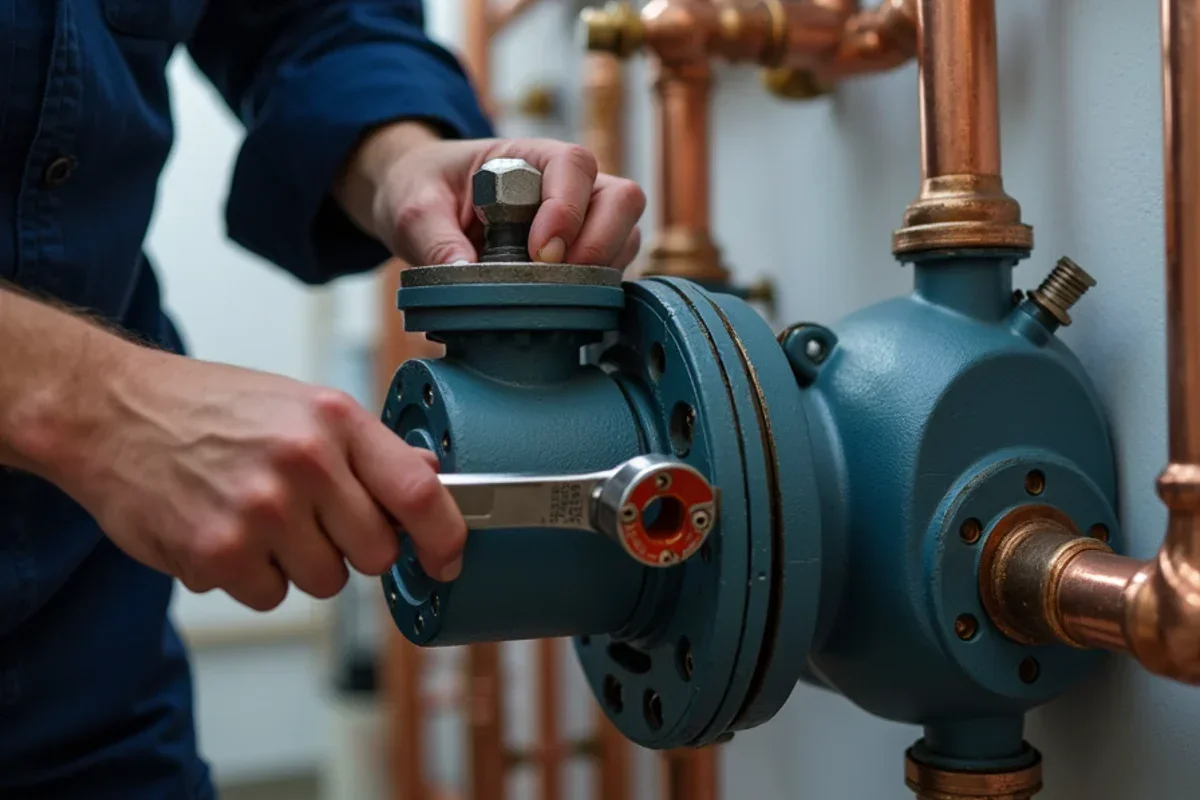

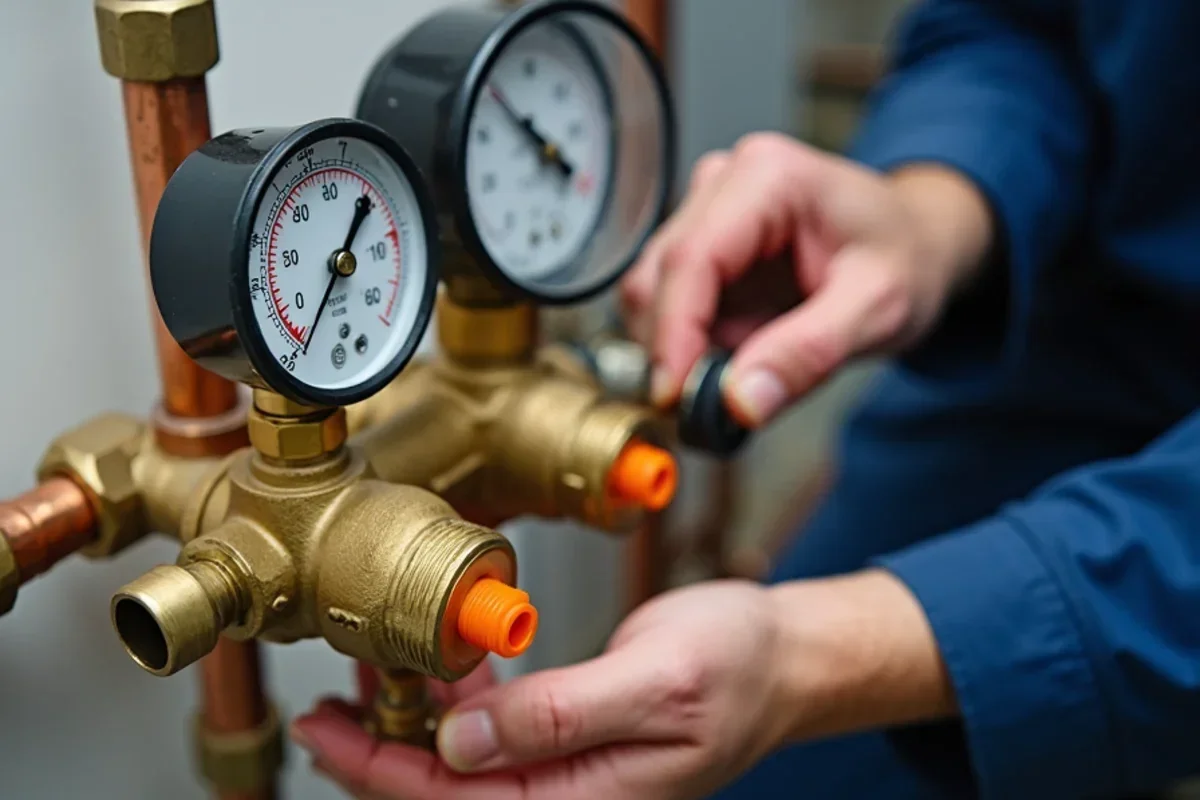

A residential boiler operates as a closed pressurized vessel circulating hot water (or steam) through dedicated zone loops. A malfunction in water feed valves, expansion tanks, or circulator pumps can cause rapid overheating, air binding, or dangerous pressure buildup. Our complete boiler repair scope includes: • Hydronic Pressure Diagnostics: Testing static cold fill pressure (typically 12 to 15 PSI for residential two-story homes) and hot operating pressure to diagnose expansion tank failure or faulty pressure-reducing auto-feed valves. • Circulator Pump Repair & Replacement: Testing amp-draw, checking wet-rotor bearings, and replacing failed single-speed or ECM variable-speed circulators (Taco, Grundfos, B&G). • Zone Valve Troubleshooting: Testing 24V end switches, synchronous motor heads, and internal valve bodies across Taco, Honeywell, and Erie multi-zone manifolds. • Air Elimination & System Bleeding: Clearing stubborn airlocks, servicing microbubble Spirovents, installing high-capacity automatic air vents, and manual loop purging. • Pressure Relief Valve Replacement: Replacing dripping or seized ASME-rated 30 PSI boiler safety relief valves and verifying code-compliant copper discharge piping. • Aquastat & Limit Control Calibration: Testing high-limit aquastats, low-water cut-off (LWCO) probes, and outdoor reset curves to prevent thermal shock and kettling. • Gas Combustion & Heat Exchanger Descaling: Flue-gas combustion analysis, burner tray cleaning, thermocouple/igniter replacement, and secondary heat exchanger flushing.

Boilers operate under continuous pressure and high temperatures. Recognizing early mechanical warning signs prevents flooded mechanical rooms, ruined hardwood flooring from radiator leaks, or complete freeze-ups during polar vortex conditions. Common hydronic warning symptoms include: 1. Cold Radiators or Uneven Heat Distribution: The boiler fires and reaches temperature, but specific radiators, baseboard loops, or in-floor heating zones remain stone cold. This usually indicates an airlocked loop, a failed zone valve actuator, or a seized circulator pump. 2. Pressure Relief Valve Leaking or Weeping Water: The 30 PSI pressure relief valve discharges water onto the floor or through the drain pipe. This is almost always caused by a waterlogged expansion tank whose internal rubber bladder has ruptured, leaving no room for water expansion. 3. Clanging, Banging, or Kettling Noises: Loud banging inside boiler piping (often called 'kettling') occurs when mineral scale coats cast-iron heat exchanger sections, causing localized boiling, steam pockets, and mechanical cavitation. 4. System Pressure Dropping to Zero: If your combination pressure/temperature gauge (tridicator) drops below 10 PSI, safety low-water cut-off sensors will prevent the burner from firing to protect the heat exchanger from dry firing. 5. Water Pooling Beneath Boiler Piping: Leaks around circulator flange gaskets, air scoop vents, sight glass connections, or cast-iron section nipples require prompt mechanical pipefitter repair.

Performance Mechanical approaches hydronic heating repairs with the disciplined diagnostic methodology of a union pipefitter: Step 1: Visual Inspection & Hydronic Pressure Audit We inspect the boiler tridicator gauge, check expansion tank air pre-charge pressure with a digital gauge, inspect pressure relief valves, and examine mechanical room piping for weeping joints or corrosion. Step 2: Electrical Sequencing & Multi-Zone Relay Testing We test the 24V transformation, zone valve end-switch closures, zone control board relays (such as Taco switching relays), and aquastat safety switches using Fluke multimeters. Step 3: Thermal Loop & Circulator Flow Verification Using infrared thermal imaging cameras and surface temperature probes, we verify supply and return water temperature differentials across each heating loop to identify sluggish flow or air pockets. Step 4: Combustion Analysis & Heat Exchanger Safety Check We insert an electronic combustion analyzer into the flue breach to measure carbon monoxide (CO), oxygen, stack temperature, and combustion draft to ensure safe, code-compliant burning. Step 5: Master Pipefitter Component Replacement We isolate the defective component using isolation ball valves, replace circulator pumps, zone valves, or expansion tanks using heavy-duty fittings, and properly seal all threaded connections. Step 6: Power Purging, Pressure Balancing, & Operational Testing We high-pressure power-purge all hydronic zones to remove trapped air bubbles, verify auto-feed shutoff at 12–15 PSI, cycle the boiler through high-limit shutoff, and inspect every radiator in your home.

Hydronic heating repairs depend on whether the issue is electrical control, fluid pressure, or piping replacement. We provide clear, itemized quotes before beginning any work: • Diagnostic Assessment: Complete hydronic system evaluation, including pressure testing, combustion check, and electrical tracing. • Minor Hydronic Repairs ($175 – $375): System air purging, automatic air vent replacements, thermocouple replacements, or pressure relief valve swaps. • Mid-Range Mechanical Repairs ($375 – $850): Circulator pump motor replacements, multi-zone valve actuator head replacements, or backflow preventer/auto-feed combo replacements. • Major Hydronic Overhauls ($850 – $2,000): Complete cast-iron expansion tank replacements with modern bladder tanks, multi-zone relay control board upgrades, or secondary heat exchanger chemical descaling. If an antique boiler has cracked cast-iron sections and cannot be safely repaired, we provide comprehensive high-efficiency condensing boiler replacement options with local utility rebate guidance. Code SAVE5 provides 5% off all repairs.

Boiler operations in Minnesota are governed by the Minnesota Mechanical Code (Minnesota Rules Chapter 1346) and the Minnesota Department of Labor and Industry (DLI) Boiler Safety Division. Because boilers operate under pressure, improper repairs present severe scalding, steam explosion, and carbon monoxide risks. Our code-compliant standards include: • ASME-Rated Safety Valves: Pressure relief valves must carry an official ASME rating stamp and be sized to relieve the full BTU input of the boiler burner. • Backflow Prevention: The domestic potable water connection to your boiler must include an ASSE 1012 or ASSE 1013 backflow preventer to stop boiler water from contaminating drinking water. • Low-Water Cut-Off Protection: Minnesota code mandates functional low-water cut-offs on all modern boiler installations to prevent catastrophic dry firing. • City of Shakopee Permits: Replacement boilers or major piping reconfigurations require municipal mechanical permits and safety inspection coordination.

Most contemporary HVAC technicians are trained almost exclusively on sheet metal ductwork and standard forced-air furnaces. When confronted with an older cast-iron boiler, radiant manifold, or multi-loop zone valve board, they frequently recommend replacing the entire heating system with forced air. Performance Mechanical LLC is built on genuine pipefitter trade craft: • Union-Trained Pipefitter Mastery: Wil Fonder completed the St. Paul Pipefitters Local 455 apprenticeship in Mechanical Equipment Service, giving him advanced mastery over hydronic distribution, steam traps, and boiler engineering. • Dunwoody College Graduate: Formal technical education in thermodynamics, fluid hydraulics, and electrical diagnostics. • Dedicated Hydronic Tooling: We carry high-head purge pumps, digital manometers, combustion analyzers, and OEM hydronic replacement components directly on our mobile service trucks. • Respectful, Clean Service: Boilers can be messy during draining; we use heavy drain hoses, floor tarps, and vacuum equipment to keep your basement spotless.

From historic brick residences with heavy cast-iron radiators in downtown Chaska and Jordan to custom lakeside homes with multi-zone radiant in-floor heat in Prior Lake, Performance Mechanical has resolved complex hydronic heating failures that stumped other contractors. Our 4.8-star Google rating reflects our honest diagnosis, fair pricing, and dedication to getting hydronic systems running quietly and efficiently without pushing unneeded replacements.

Based out of Prior Lake, our service trucks provide rapid dispatch to homes and commercial facilities with boiler heating systems across the southwest metro: • Shakopee (55379): Complete boiler diagnostics and repair across historic neighborhoods, residential basements, and light commercial properties. • Chaska & Carver (55318, 55315): Specialized care for historic hydronic radiator heating systems and older boiler installations. • Prior Lake (55372): Master service for custom residential hydronic boilers, radiant floor heat manifolds, and snow-melt loops. • Jordan & Belle Plaine (55352, 56011): Reliable rural Scott County boiler troubleshooting for LP and natural gas systems. • Savage & Burnsville (55378, 55337): Baseboard and hot water boiler repairs across suburban residential communities. • Bloomington & Eden Prairie (55437, 55344): Hydronic heating service for split-level and mid-century modern boiler homes.
